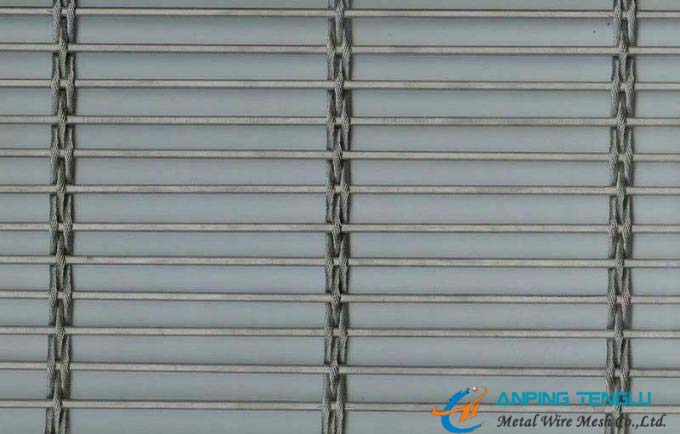

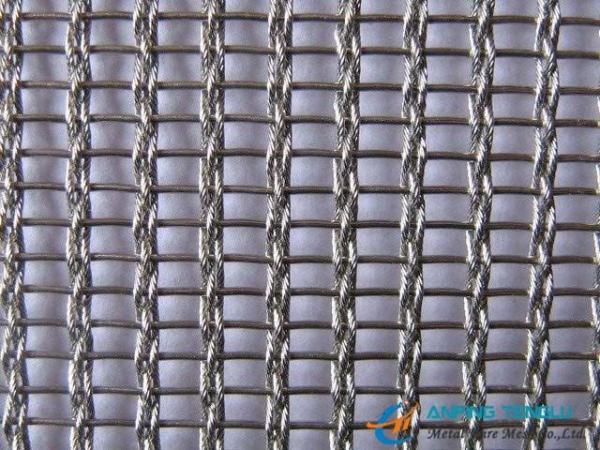

Stainless Steel Cable Rod Decorative Mesh is made of high quality stainless steel, brass, phosphor bronze woven from wire drawing, stranding, co-rope, polishing, washing, weaving. Products with durable, gorgeous high-end, high-tech, are widely used in high buildings curtains, ceiling, stairs, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings, indoor and outdoor decoration, in the light irradiation under the magnificent, elegant and refined.
Stainless steel cable rod mesh as architectural mesh for decoration and design combines functionality with high aesthetic features. A combination opens new perspectives to creative design and allow for fascinating architectural solutions. Due to their multiple functional and aesthetic qualities, the meshes are suitable for various applications in architecture and interior design.
Features:
Durable, luxuriant high-grade, high technology content,and is widely used in the curtain of base construction, condole top, stairs, elevators, luxurious office buildings, hotels, luxury ballroom, business hall indoor and outdoor decoration of buildings. Under the illuminate of lamplight, it will be magnificent, elegant and delicate.
Applications:
Wire mesh facades;
Shade screens;
Architecture ceilings;
Metal draperies for walls, partition and isolation screens;
Staircases isolation screen, elevator cabins screen;
Floor covering fabrics;
Other special uses.
Cable Rod Architectural Decoration Specifications:
| Material | Cable Dia. | Cable Pitch | Rod Dia. | Rod Pitch |
| Stainless Steel 304, 304L, 316, 316L | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm |
| 1x2.5 mm | 6 mm | 2 mm | 8 mm |
| 2x2.75 mm | 40 mm | 4 mm | 14.5 mm |
| 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm |
| 3x1.6 mm | 80 mm | 2.5 mm | 10 mm |
| 3x2 mm | 80 mm | 3 mm | 10 mm |
| 3x2.75 mm | 110 mm | 4 mm | 14.5 mm |
| 3x3 mm | 110 mm | 4 mm | 14.2 mm |
| 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm |
| 4x1 mm | 36 mm | 2 mm | 6.6 mm |
| 4x2 mm | 50 mm | 3 mm | 6 mm |
| 4x2 mm | 50 mm | 3 mm | 6 mm |
Special without in the chart is available as your request.

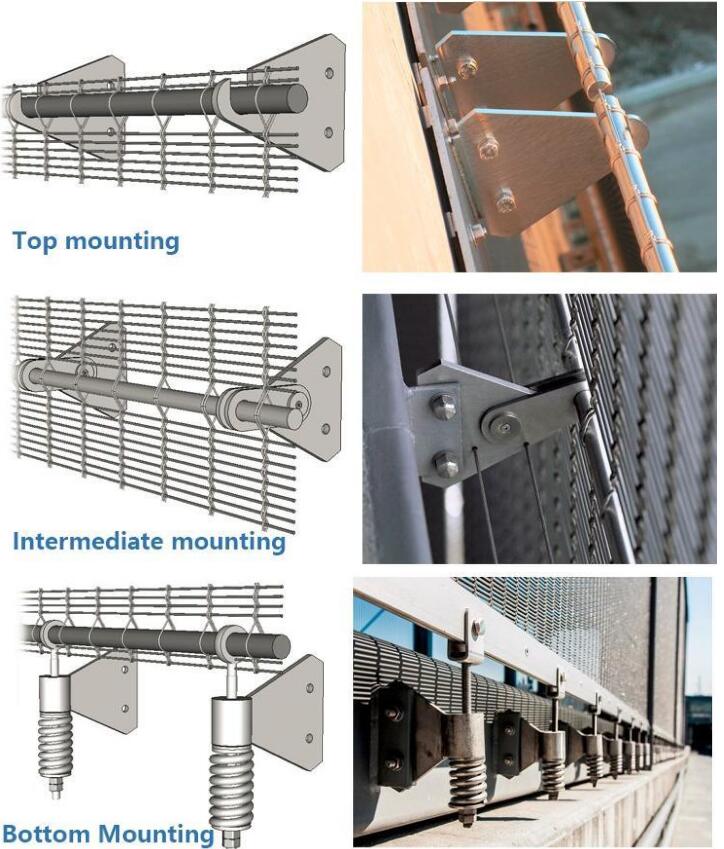

Installation:
|
|

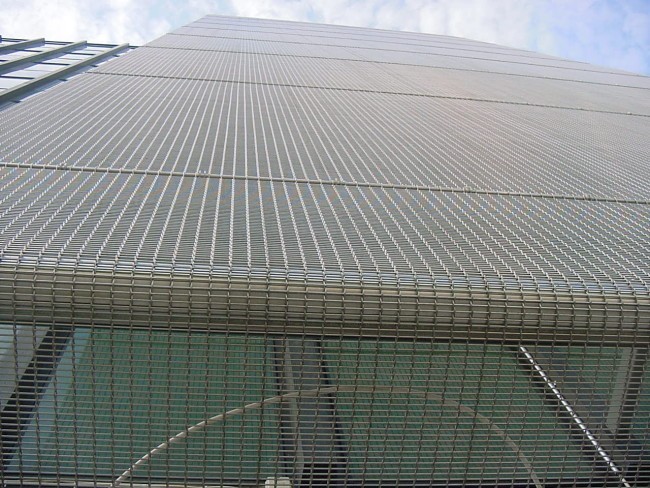

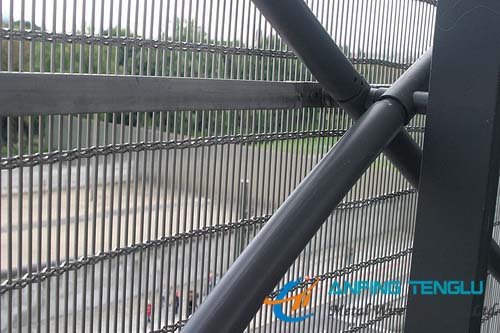

Stainless Steel Cable Rod Decorative Mesh for Architectural Decoration Images
|
